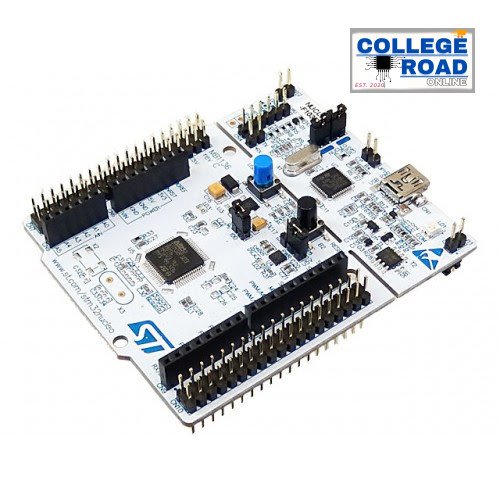

NUCLEO-F411RE STM32 ARM mbed Development Board
$ 41.40
Description STM32 micro-controller with LQFP64 packageSTM32F411RET6 ( 512K FLASH )Two types of extension resourcesArduino Uno Revision 3 connectivitySt Microelectronics Morpho extension pin headers for full access to all STM32 I/Osmed-enabled (mbed.org)On-board ST-LINK/V2-1 debugger/programmer with SWD connectorselection-mode switch to use the kit as a standalone ST-LINK/V2-1Flexible board power supplyUSB VBUS or external source(3.3 V, 5 V, 7 – 12 V)Power management access pointThree LEDsUSB communication (LD1), user LED (LD2), power LED (LD3)Two push buttons: USER and RESETUSB re-enumeration capability: three different interfaces supported on USBVirtual Com portMass storageDebug portComprehensive free software HAL library including a variety of software examplesSupported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based IDEs
