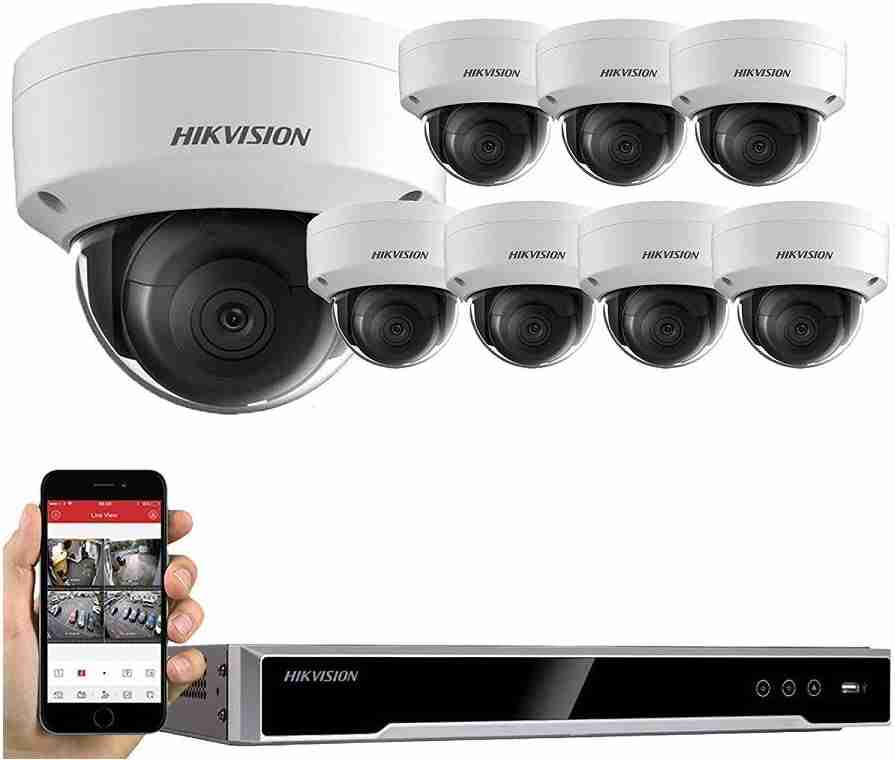

HIKVISION DS-2CD2183G0-iS 8MP SYSTEM 8CH NVR

Description HIKVISION DS-2CD2183G0-iS 8MP SYSTEM 8CH NVR 4K Outdoor WDR Fixed Dome Network Camera High quality imaging with 8 MP resolution Efficient H.265 compression technology Clear imaging against strong back light due to 120 dB true WDR technology -S: audio and alarm interface available Water and dust resistant (IP67) and vandal proof (IK10) Robust structure design with full metal materials Camera Image Sensor1/2.5″ Progressive Scan CMOS Min. IlluminationColor: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR Shutter Speed1/3 s to 1/100,000 s Slow ShutterYes Wide Dynamic Range120dB Day & NightIR Cut Filter Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° Lens FocusFixed Lens Type2.8/4/6/8 mm FOV2.8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124°,4 mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95°,6 mm, horizontal FOV: 50°, vertical FOV: 28°, diagonal FOV: 59°,8 mm, horizontal FOV: 40°, vertical FOV: 25°, diagonal FOV: 53° ApertureF2.0 Lens MountM12 Aperture TypeFixed Illuminator IR RangeUp to 30 m Wavelength850nm Video Max. Resolution3840 × 2160 Main Stream50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 Video Bit Rate32 Kbps to 16 Mbps H.264 TypeMain Profile/High Profile H.265 TypeMain Profile H.264 Main stream supports H.265 Main stream supports Scalable Video Coding (SVC)H.264 and H.265 encoding support Audio Environment Noise FilteringYes Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) Network Simultaneous Live ViewUp to 6 channels APIONVIF (PROFILE S, PROFILE G), ISAPI ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, WebSocket, WebSockets User/HostUp to 32 users,3 levels: Administrator, Operator and User Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 Web BrowserPlug-in required live view:,IE8 , Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0 , Firefox 52.0 Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error Image Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S) Target CroppingNo DNR3D DNR Image EnhancementBLC/3D DNR /HLC Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser Interface Audio1 input (line in/mic in), 1 output (line out), terminal block, mono sound Alarm1 input;1 output (max. 12 VDC, 30 mA), terminal block Video OutputNo On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB Hardware ResetYes Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port Event Face DetectionYes General General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) Power Supply12 VDC ± 25%, Φ 5.5 mm ,PoE(802.3af, class 3) Power Consumption And CurrentDC: 12 V, 0.6 A, max. 7.5 W,PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 9 W Camera DimensionCamera: Φ 111 mm × 82.4 mm (Φ 4.4″ × 3.2″),Package: 134 × 134 × 108 mm (5.3″ × 5.3″ × 4.3″) Camera WeightCamera: approx. 500 g (1.1 lb.) Approval ProtectionIK10, IP67   Hikvisions very latest Easy IP 3.0  8MP POE IP CCTV System. Offering an extra ordinary UHD 4K (3840 × 2160) Resolution picture quality via a 2.8 mm Lens (90° wide view angle) Vandal Resistant camera. Hikvisions latest state of the art, Easy IP 3.0 product line, boasts the first Hikvision cameras to support H.265 , a remarkable and innovative encoding technology based on the H.265/HEVC standard. This intelligent, in-house developed algorithm is optimized to address the typical features of standard surveillance videos: H.265 substantially decreases the bit rate of the surveillance video, so as to reduce bandwidth and storage costs. High resolution does not always equal good image quality; video surveillance cameras need to perform under all sorts of conditions, including variable light, high contrast, or light deficiency. For this reason, all cameras of the new Easy IP 3.0 line have been equipped with a 120 dB True WDR. and excellent color images even in low light conditions.
