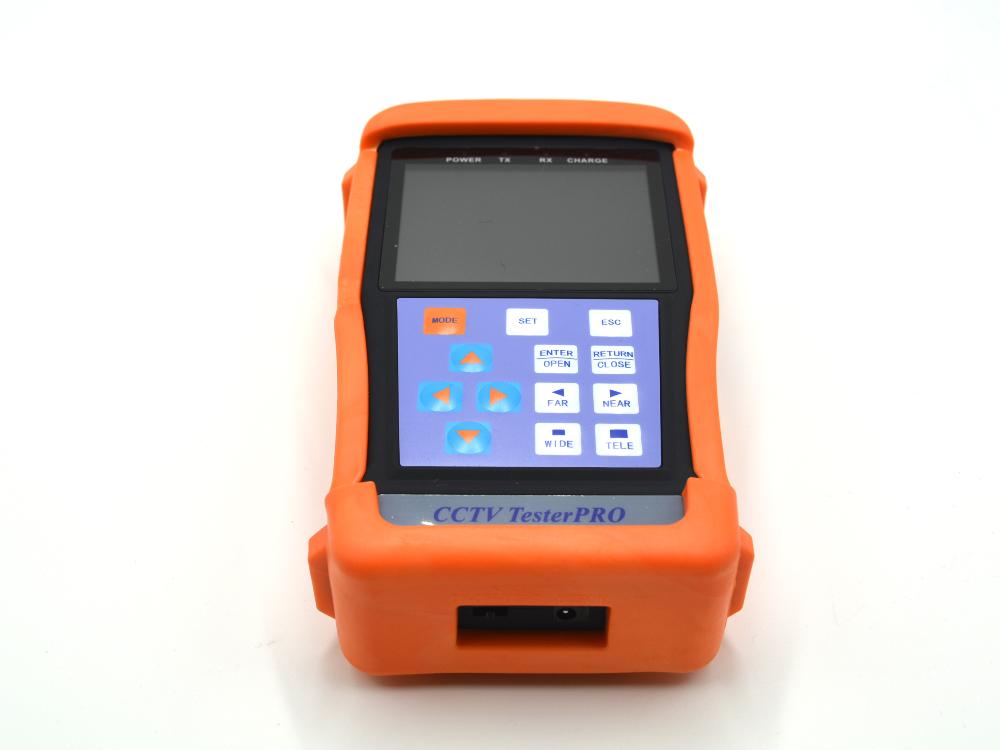

Description 3.5″ TFT LCD, 960(H)x240(V) Resolution Video Level testing, video signals measured in IRE or mV DC12V 1A power output for camera Audio input testing, testing the audio signal from pickup devices PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and calls the preset position Video displaying. Automatically adapts and displays the video format of NTSC/PAL. LCD Brightness are adjustable. Video Generating, The PAL/NTSC multi-system colour bar video generator (seven-system switchable, transmit/receive seven-system colourful images Data analyst. Captures and analyses RS485 controlling data to help the technician to find out the problem. It is powerful in testing LAN cable, measuring the connecting status displaying the sequence of connection and the Number of the LAN cable. Multi-interface and Multi-baud rate. Supports RS232, RS485 and RS422 interface; baud rate ranging from 150, 600 to 19200bps. Supports more than twenty PTZ protocols for example PELCO-P, PELCO-D, SAMSUNG etc. PTZ address scanning, search up the ID of PTZ camera. Lithium Ion Polymer Battery (3.7V DC3000mAh)
